- 6寸全頻喇叭
- 106.5鐵氧體磁鐵 雙磁 防磁
- 25芯耐高溫音圈 ASV鋁骨架
- 高強度的反邊鐵盆架
- 橡膠懸邊玻纖復合鼓紙

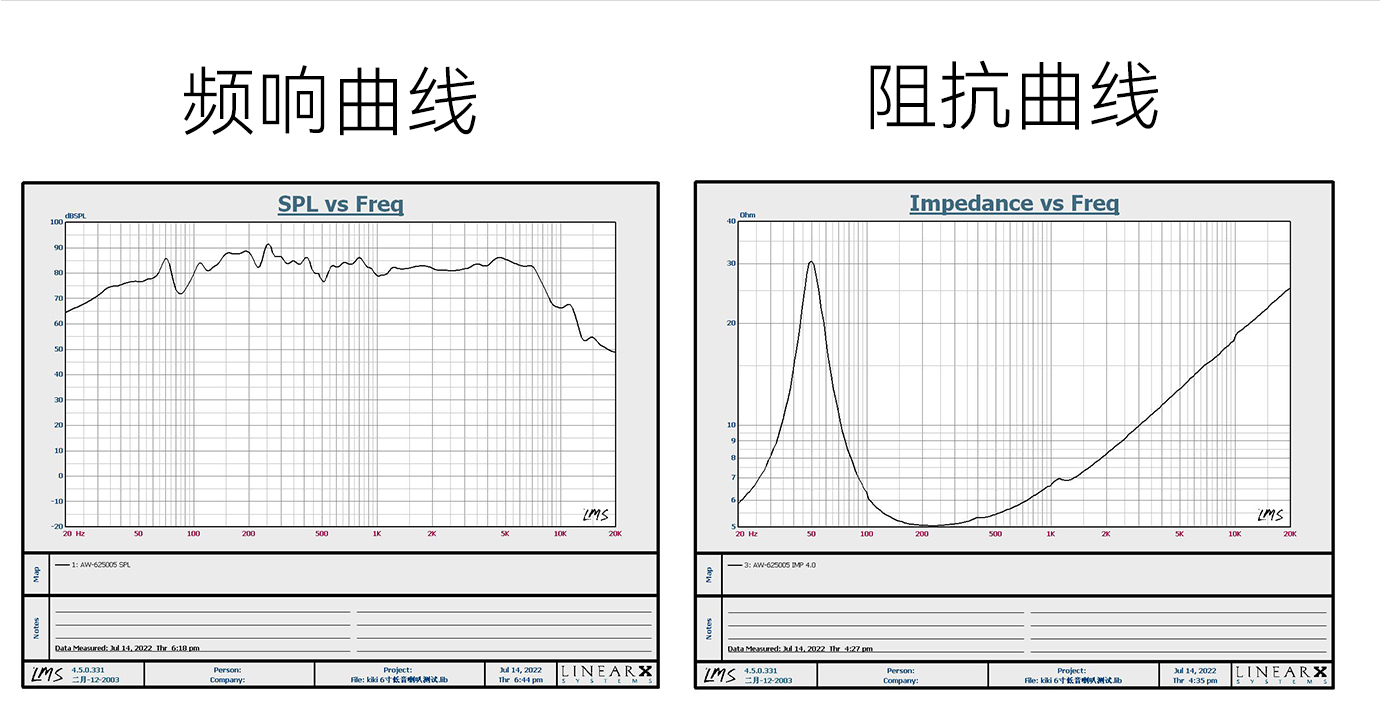

- 50Hz-6KHz 頻響范圍
- 87dB靈敏度
- 90W額定功率
- 適用于書架音箱、中置音箱、主音箱
喇叭揚聲器
Aa1智泓 AW-425017
| Nominal diameter | 6 inch |
| Nominal impedance | 4Ω |
| Power rating | 15-90W |
| Sensitivity(1w\1m) | 87dB |
| Frequency range | 50Hz-6KHz |
| Voice coil diameter | Φ25 |

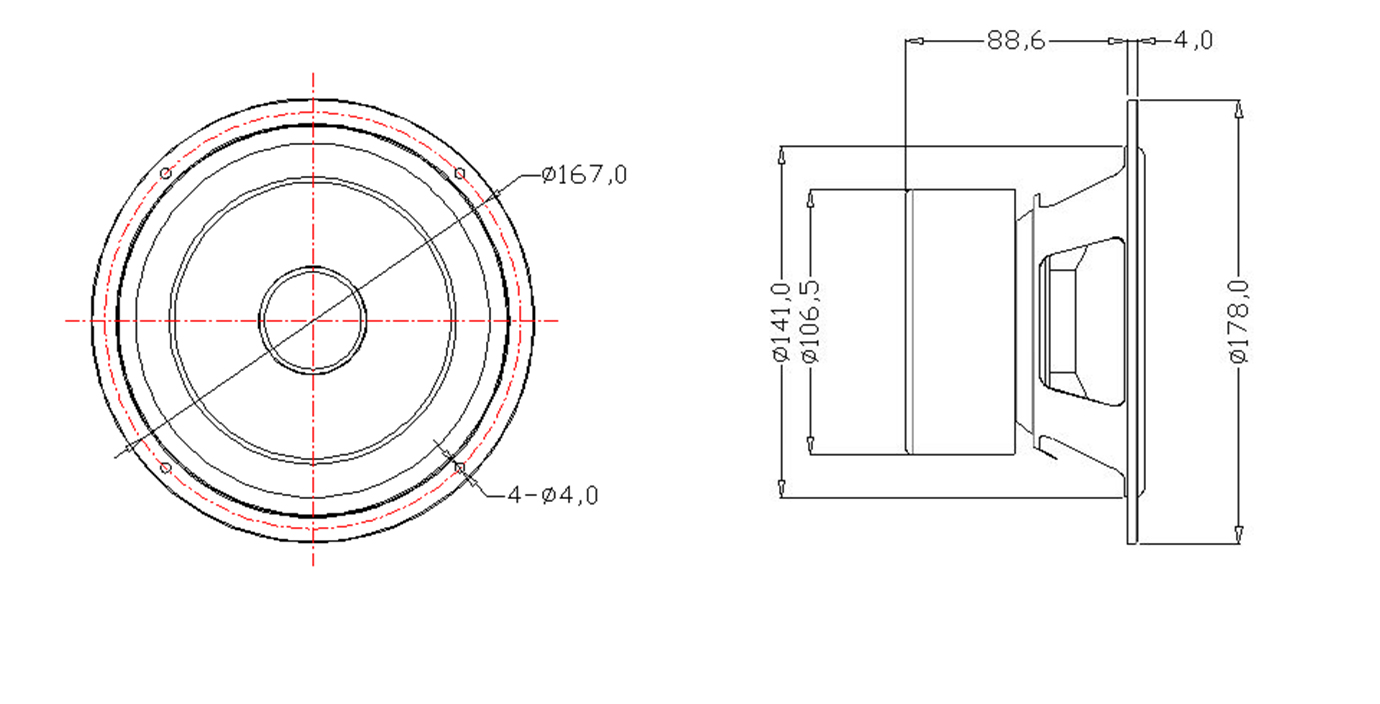

| Magnet dimension | 90*45*20 |
| Fs | 50.414 Hz |
| Re | 4.000 Ohm |
| Qms | 3.590 |
| Qes | 0.622 |
| Qts | 0.530 |
| Vas | 16.910 Ltr |
| Cms | 6.75.956u M/N |
| n.(%) | 0.337 % |
| Bl | 5.481 T |
| Sd | 13.273K mm |
