- 4寸全頻喇叭
- 70鐵氧體磁鐵 雙磁 防磁
- 25芯耐高溫音圈 ASV鋁骨架
- 高強度的反邊鐵盆架
- 橡膠懸邊啞光紙鼓紙 啞光紙正帽
- 60Hz-4KHz 頻響范圍
- 85dB靈敏度
- 40W額定功率
- 適用于書架音箱、中置音箱、主音箱
喇叭揚聲器
Aa1智泓 AW-425017
| Nominal diameter | 4 inch |
| Nominal impedance | 3.6Ω |
| Power rating | 10-40W |
| Sensitivity(1w\1m) | 85dB |
| Frequency range | 60Hz-4KHz |
| Voice coil diameter | Φ25 |

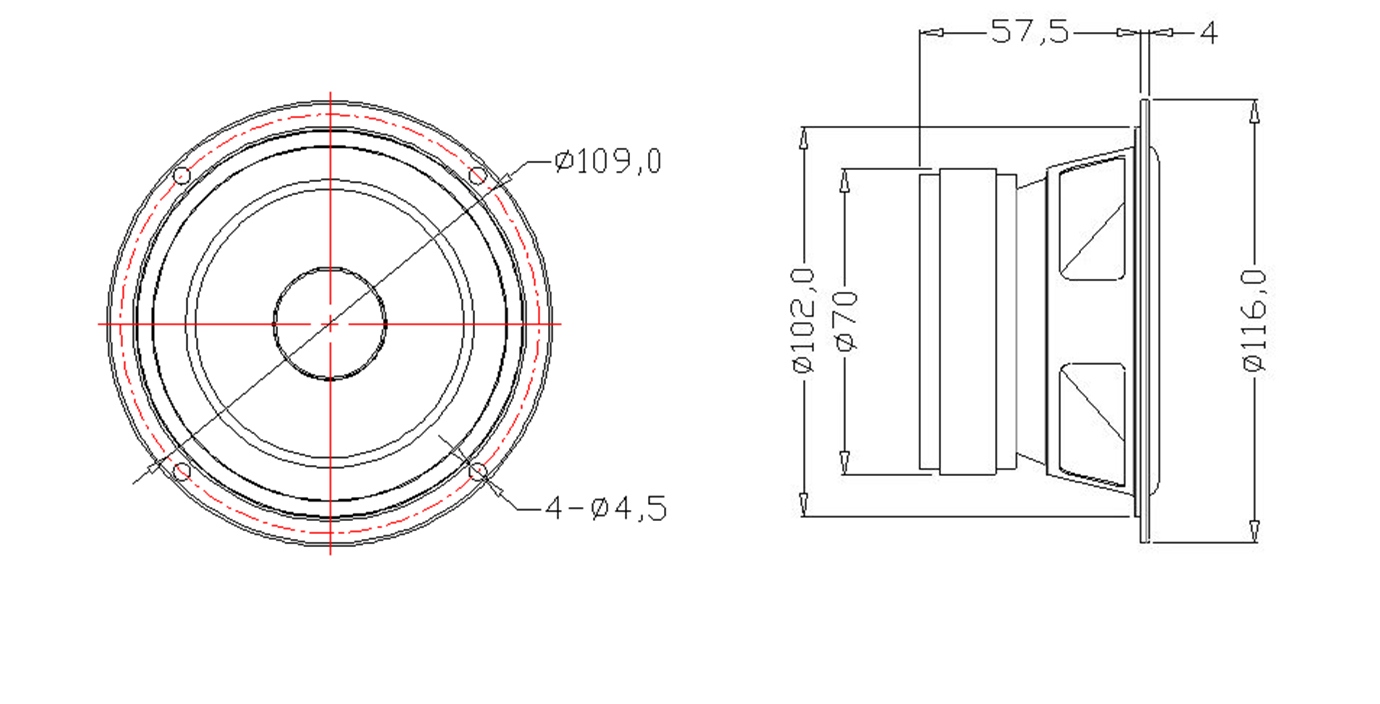

| Magnet dimension | 70*32*15 |
| Fs | 95.428 Hz |
| Re | 3.600 Ohm |
| Qms | 3.667 |
| Qes | 0.906 |
| Qts | 0.727 |
| Vas | 2.055 Ltr |
| Cms | 471.208u M/N |
| n.(%) | 0.191 % |
| Bl | 3.750 T |
| Sd | 5.542K mm |
