- 5寸全頻喇叭
- 80鐵氧體磁鐵
- 25芯耐高溫音圈 KSV鋁骨架
- 高強度的鋁盆架
- 橡膠懸邊復合鼓紙 啞光PP反帽
- 60Hz-6KHz 頻響范圍
- 86dB靈敏度
- 60W額定功率
- 適用于書架音箱、中置音箱、主音箱
喇叭揚聲器
Aa1智泓 AW-425017

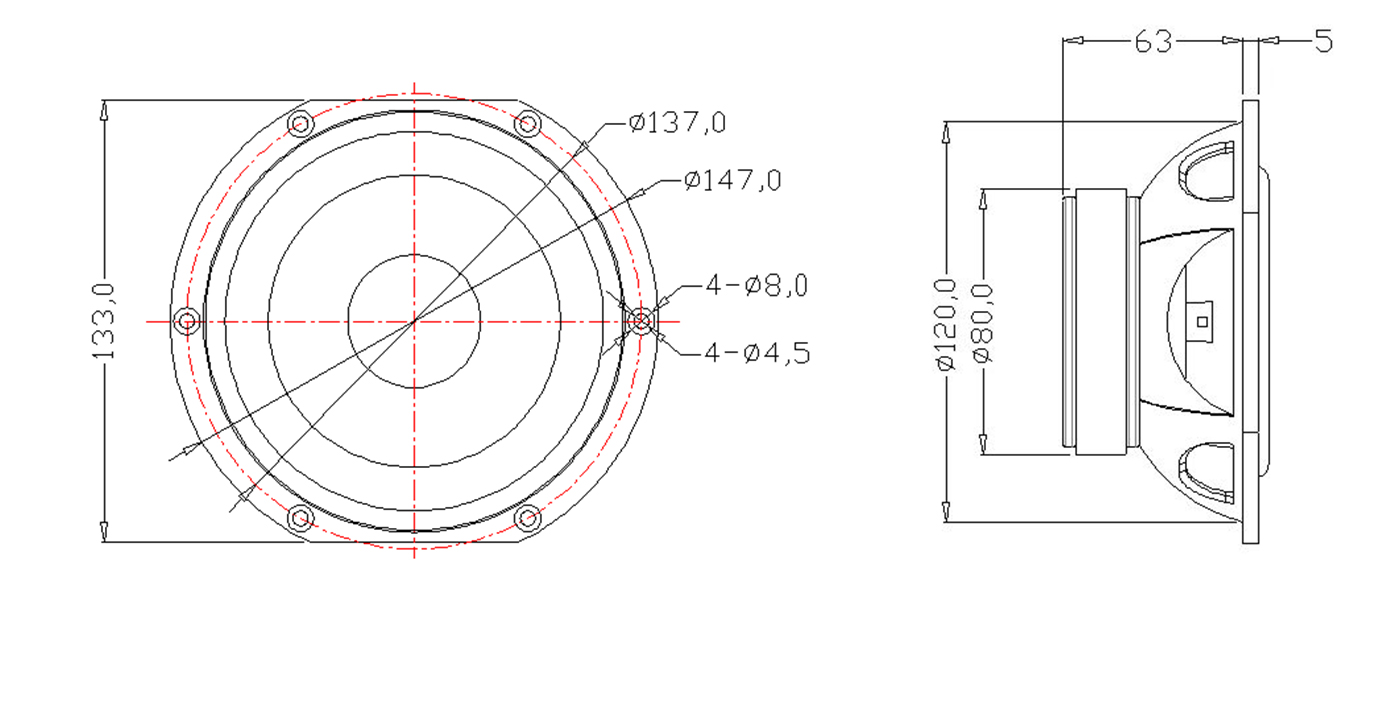

| Nominal diameter | 5 inch |
| Nominal impedance | 6.4Ω |
| Power rating | 15-60W |
| Sensitivity(1w\1m) | 86dB |

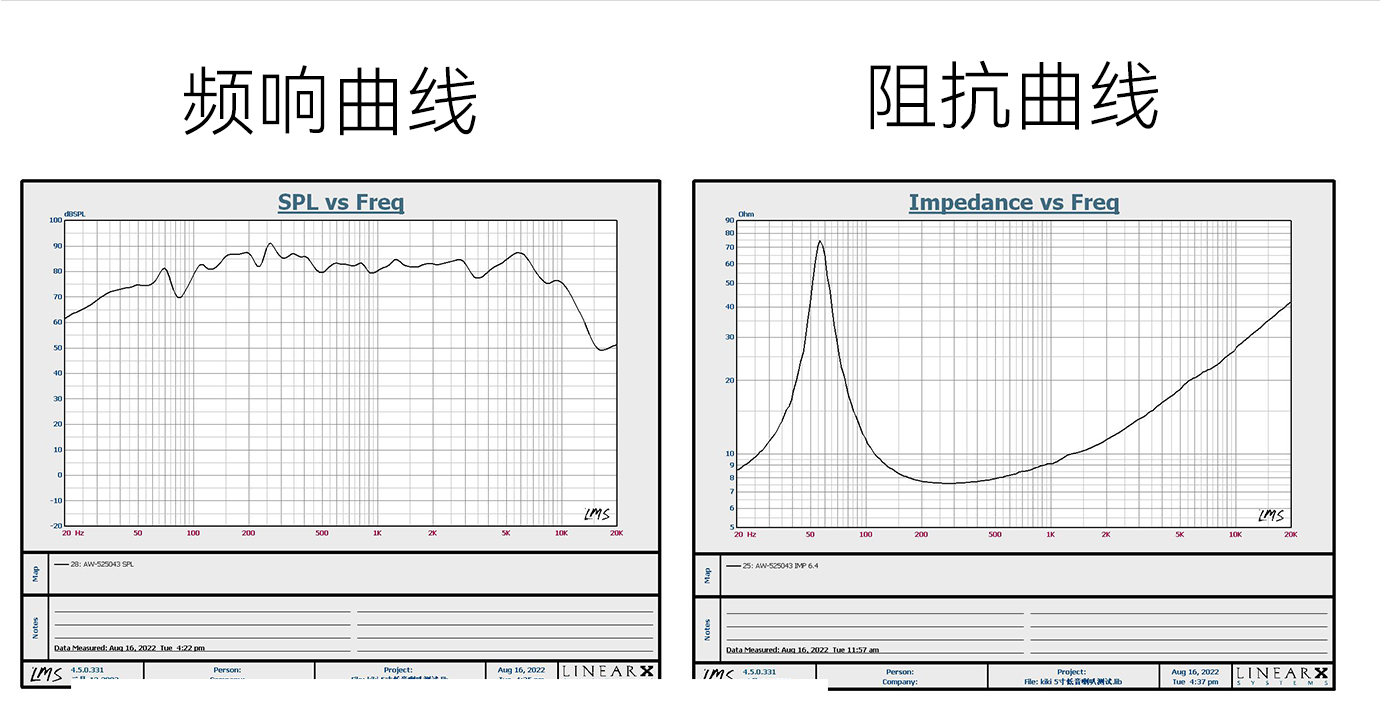

| Frequency range | 60Hz-6KHz |
| Voice coil diameter | Φ25 |
| Magnet dimension | 80*32*15 |
| Fs | 57.008 Hz |
| Re | 6.400 Ohm |
| Qms | 5.481 |
| Qes | 0.582 |
| Qts | 0.526 |
| Vas | 9.479 Ltr |
| Cms |
739.223u M/N |
| n.(%) | 0.292 % |
| Bl | 6.446 T |
| Sd | 9.503K mm |
