- 4寸全頻喇叭
- 80鐵氧體磁鐵
- 25芯耐高溫音圈 KSV骨架
- 高強度的鋁盆架
- 橡膠懸邊霧白鋁鼓紙 霧白鋁反帽
- 65Hz-8KHz 頻響范圍
- 87dB靈敏度
- 50W額定功率
- 適用于書架音箱、中置音箱、主音箱
喇叭揚聲器
Aa1智泓 AW-425017

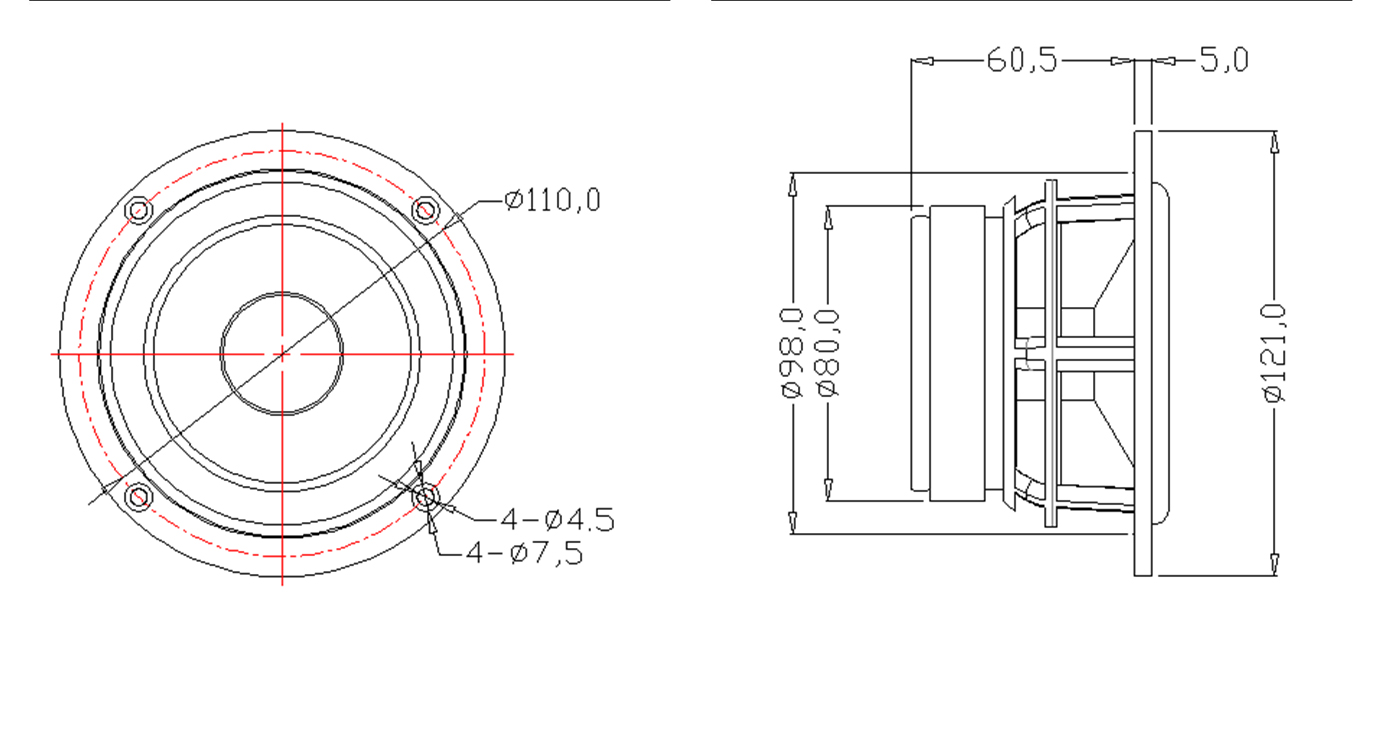

| Nominal diameter | 4 inch |
| Nominal impedance | 3.4Ω |
| Power rating | 10-50W |
| Sensitivity(1w\1m) | 87dB |

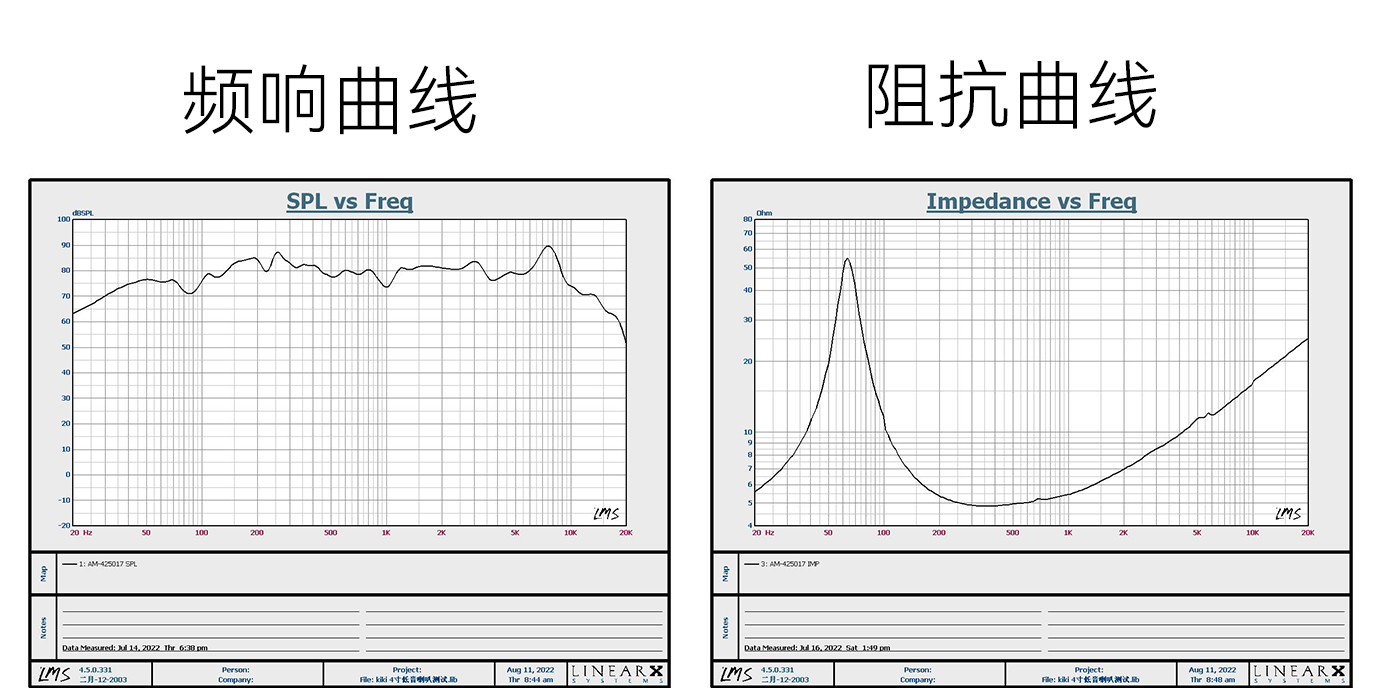

| Frequency range | 65Hz-8KHz |
| Voice coil diameter | Φ25 |
| Magnet dimension | 80*32*15 |
| Fs | 64.157 Hz |
| Re | 3.600 Ohm |
| Qms | 4.655 |
| Qes | 0.376 |
| Qts | 0.348 |
| Vas | 4.334 Ltr |
| Cms | 993.695u M/N |
| n.(%) | 0.294 % |
| Bl | 4.888 T |
| Sd | 5.542K mm |
